BRC001 Guitar Pickup Winder

The BRC001 High Speed Winder has been designed specifically for smaller coils types that have very small magnet wire, offering smooth, non-slip, high speed performance.

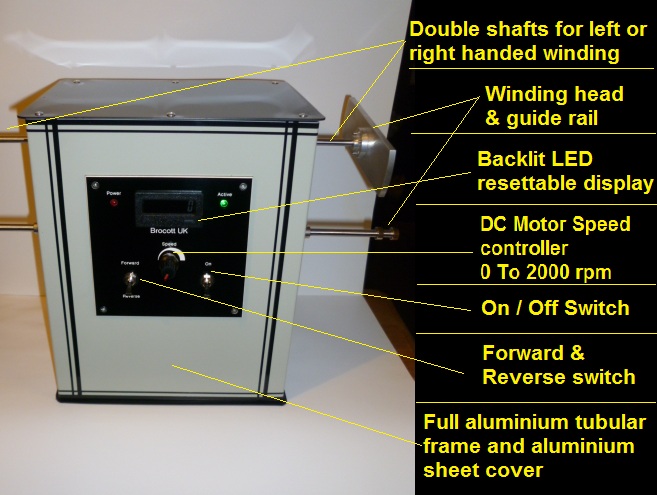

No corners have been cut on the design of this model, incorporating only high quality materials & components. From...

- All stainless steel screws

- Aluminium tubular frame

- Aluminium casing

- High specification reduction gearbox & motor

- 8 digit LCD backlit resettable counter

- Forward & Reverse function

- Ambidextrous functionality

The winding head is removable so that a bobbin or other types of winding formers can be attached either on the shaft or against the back flange. The winding head also contains a set of high strength neodymium disc magnets which allows for a guitar pickup or other core former to be attached.

The winding shaft also extends equally out of the left side of the machine casing, so a quick switch over of the winding head assembly and front guide rail will facilitate ambidextrous (left handed) use. Another handy feature is a forward & reverse function, so at the throw of a switch the winding head will run equally as smooth & fast in the opposite direction. Full speed control from zero to 2000 RPM is achieved via the main speed controller dial.

The machines are powered via a 12vdc pluging adaptor (Supplied with machine) so only a low, safe voltage is active at the machine end.

Dimensions: (H)260mm x (W)210mm x (D)160mm

With over 25 years hands on experience in all aspects of coil manufacture & winding, our design technician can offer a full and comprehensive technical support for all of your winding needs, so feel free to give us a call.
