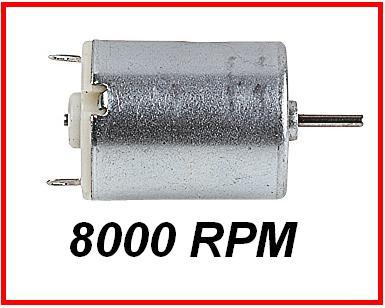

Micro High Torque Motor, 8000 rpm, 1,5 - 6.0v

Price:

£1.95

SKU:

370144

Shipping:

Calculated at checkout

Product Description

A Complete range of high quality micro motors There is a motor for most applications. Widely used in industrial automation & robotics. Whether a student, hobbiest, garden shed Guru or applications developer, these motors provide real versatility and can be easily implemented into existing systems.

Micro High Torque Motor - 8000 Rpm, 1,5 To 6,0 VDC

Technical Specification...

Rated voltage:                               3V DC

No load current:                            0.23A max.

No load speed:                              9,000rpm ± 15%

Rated load:                                     10.0 g.cm

Rated load current:                      0.63A max.

Rated load speed:                        8,000rpm ± 12%

Length excluding shaft:              30.5mm

Diameter:                                        24.2mm

Shaft length:                                  12mm

Shaft diameter:                             2mm

Weight: 42g approx.
