Motor / Speed Controller / Dimmer 240Vac / 110Vac, 5 Amp

Price:

£19.95

SKU:

M012

Shipping:

Calculated at checkout

Product Description

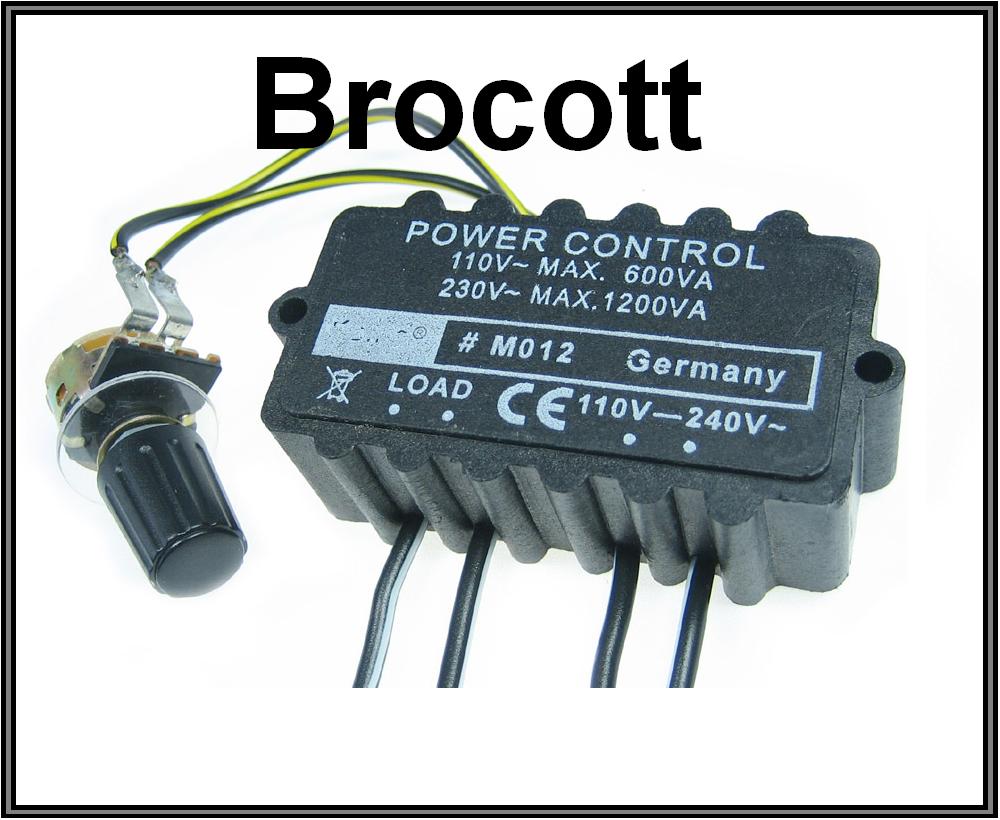

Speed Controller / Dimmer 110V / 240V

Manufacturers Notes...M012

Loads of applications! ...regulates incandescent lamps, heaters, hand drills, motors etc. via a potentiometer. Operating voltage: 110...240V~. Max. admissible current: 6 amperes (3A constant duty). At 230V~ this corresponds to 1200 / 600W and to 600 / 300W at 110V~.
Available attachments: auxiliary module M150 DC and Pulse Converter. When superposing this module, it also possible to control the dimmer module M012 with control voltages (1..5V= or 3...12V= or 6..24V=) or with TTL pulses.

The controller can only be used to control the speed of a 1ph, AC electric motor providing that the motor does NOT have an internal centrifugal switch.

Technical data...

Admissible operating voltage: AC 110...240V, 50...60 Hz

Max. admissible current: 6A (constant duty: 3A), at 110V~ this corresponds to maximally 600 watt or constant duty 300 watt, respectively, or to maximally 1200 watt or constant duty 600 watt, respectively, at 230Vac

Duty cycle: 100% at 3A or 20% (max. 3 min.) at 6A, respectively

Control: via a firmly connected rotary potentiometer

Loads: for ohmic or inductive loads

Dimensions: approx. 61 x 35 x 23 mm
