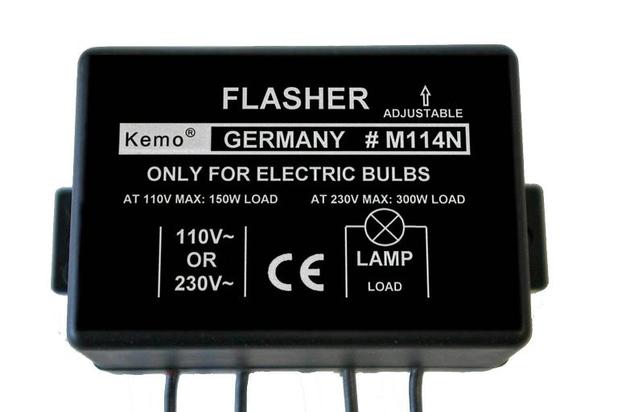

Flasher with adjustable flash period: approx. 0.6...9 seconds turn-on time. Turn-off time approx. 50% of the turn-on time, respectively. Built-in fuse: T 1.6A. For electric light bulbs 15...300 watt, 230V~ (15...150W at 110V~).
Use: billboards, model lighthouse etc.

Technical data:

• Operating voltage: 110...240V AC
• Rupturing capacity: for electric light bulbs 110V up to max. 150W at 110V~ operating voltage, or for electric light bulbs 230V max. 300W at 230V~ operating voltage
• Minimum load: 15W
• Safety fuse: installed 1.6A delay-action
• Flash period: approx. 0.6...9 seconds on-transition time (adjustable), disconnecting time approx. 50% of the on-transition time.
• Dimensions: approx. 71 x 50 x 41 mm
