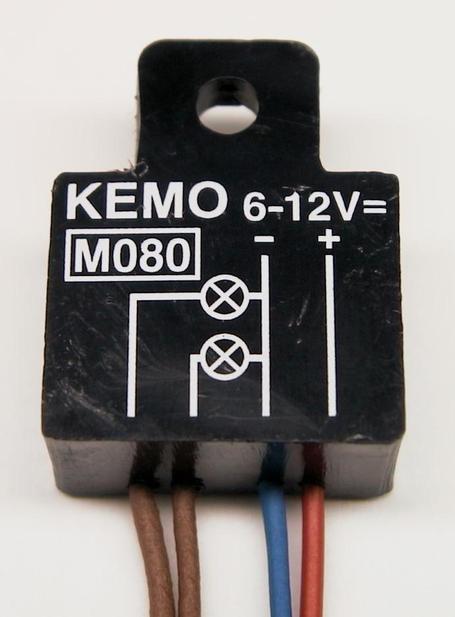

It is possible to connect small glow lamps up to a max. current load of 300mA. Flashing frequency: approx. 2...3 Hz (approx. 120...180 flashing pulses per minute). Suitable as flasher or alternating flasher.

Technical data:

• Operating voltage: 6...12 Volt=
• Operating mode: flasher or alternating flasher
• Output: 2 outputs each for max. 300mA
• Flash sequence: approx. 2...3 Hz (120...180 x per minute)
• Flashing / rest relation: approx. 50 : 50 %
• Dimensions: approx. 18 x 15 x 12 mm
