Brocott UK

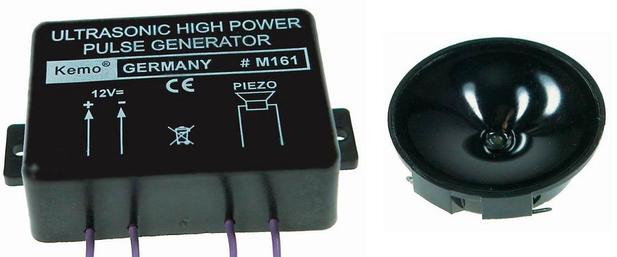

To chase away wild animals such as foxes, badgers, wild boar, deers etc from grounds, farmlands etc. The loudspeaker emits pulsed ultrasonic sounds (max. 120 dB ± 15 %), which have an acoustic range of up to 300 m with a tube placed upon (not included). Operating voltage: 12 V=.

Technical data:

• Operating voltage: 12...14.4 V
• Power consumption: max. 150 mA
• Frequency: approx. 22 kHz (not audible to men)
• Frequency curve: sine
• Pulse width: approx. 0.5 sec.
• Pulse sequence: approx. 5 sec.
• Indication: LED that flashes at impulses when the loudspeaker is connected
• Loudspeaker output: for piezo-loudspeakers. Max. 2 each of the enclosed type L010 may be operated in parallel (1 loudspeaker is attached).
• Dimensions: approx. 60 x 46 x 20 mm (without fixing lugs)

Available accessories:

• L010  Ultrasonic piezo loudspeaker
