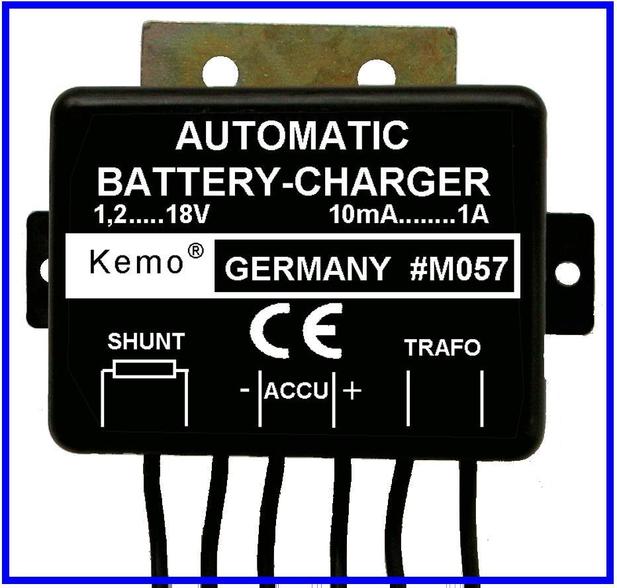

Constant current charger for batteries 1,2...18 V=. Reversible charging currents (depending on the batteries): 0,01...1 A. The charging current adjusts automatically. A transformer is required, too, which has approx. 10 V more voltage than the battery. For all battery which may be charged with constant current: e.g. NiCd, NiMH, lead or gel accumulators.
Not suitable for lithium ion batteries!

Technical data:

• Batteries capable of being charged: 1,2....18 V NiCd, NiMH, lead and gel battery, not for lithium ion batteries!
• Charging current: constant charging current adjustable in steps: approx. 10 - 20 - 50 - 100 - 200 - 500 - 1000 mA
• Required transformer AC: always 10 V higher than the voltage of the battery to be charged, max. 28 V. The maximum output current of the transformer should be higher than the desired charging current of the battery.
• Dimensions: approx. 53 x 45 x 21 mm
