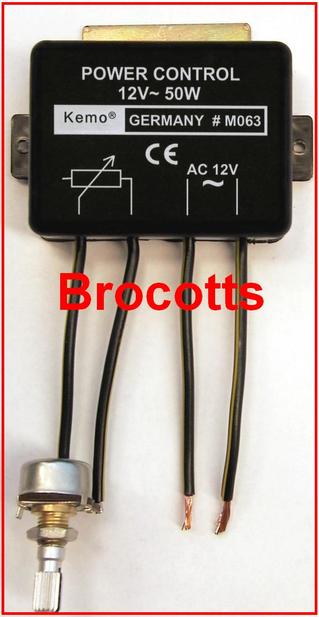

Continuously controls 12 V incandescent lamps (e.g. halogen lamps), 12 V heatings, motors (also direct current motors with added rectifier), etc.. Only to be operated at a 12 V~ transformer (50...60 Hz.), not suitable for DC voltage (batteries)! It is also possible to control 24 V~ (linear potentiometer 2.2 k) or 48 V~ (linear potentiometer 4.7 k) by exchanging the potentiometer.

Technical data:

• Operating voltage: 12 V (10...14 V) alternating voltage 50...60 Hz (for normal iron core transformers only, not for electronic halogen transformers)
• Working mode: phase control
• Loading capacity: for ohmic or inductive loads such as lamps, motors, electromagnets etc. up to 50W (4,5A)
• Dimensions: approx. 60 x 57 x 23 mm
