Manufacturers Notes...M015N

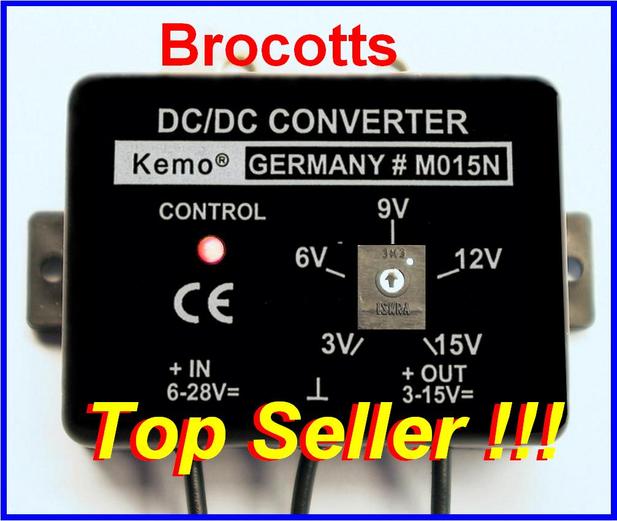

This handy module is probably the most versatile that we stock. A supply of between 6 & 28 Volts is applied to the unit, then you can set the desired output voltage of between 3 & 15 Volts via the trim pot adjuster on the front.

Uses include but are not limited to:

• Motor Bike Tourers - For the ipod & intercom power supplies etc.
• Motor Homes & Caravans - Where a lower voltage is required.
• Lorries & Wagons - To step down the 24v to 12v

The input voltage must be at least 3V higher than the adjusted output voltage. The adjusted output voltage is stabilized or short circuit-proof. For operation of appliances with lower voltages at a 12V or 24V car battery or power supplies.

Technical data...

Input voltage: 6...28VDC

Output voltage adjustable: 3...15V (electronically stabilized)

Note: The input voltage must be at least 3V higher than the adjusted output voltage

Max. output current: 1.5A

Max. dissipation: approx. 3W without heat sink, approx. 10W with heat sink (not enclosed)

Dimensions: approx. 59 x 56 x 25 mm
