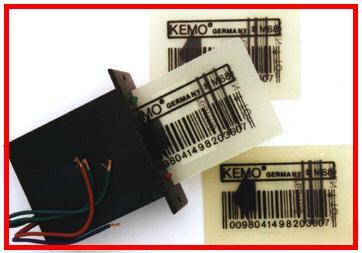

Whenever the corresponding card has been inserted into the card slot, the card switch will switch on. The card will be read optically by 4 infra-red read-heads and will solely react on the correct card. 3 cards are enclosed, coding can be changed. Operating voltage: 9V=. Usage: switching of devices, machines, alarm systems, dooropener, etc. which should be feasible only for a special circle of persons. The lock has an installed relay by means of which it is possible to connect loads up to 1A, 48V.

Technical data:

• Operating voltage: 9V=
• Output: relay contact 1 x ON, max. 1A, 48V
• Operating mode: optical with 4 infrared-reflex reading heads
• Card dimensions: approx. 85 x 54 mm (3 cards enclosed)
• Module dimensions: approx. 80 x 35 x 70 mm
