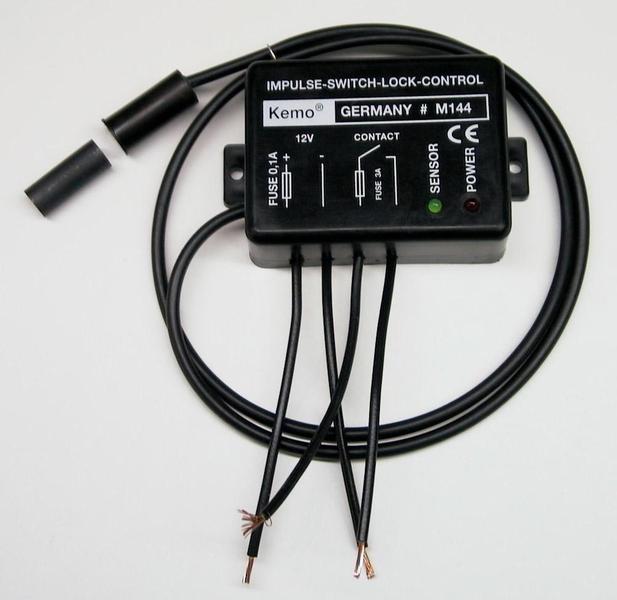

The enclosed magnet reed has to fixed close to the lock mechanism or door. If the magnet approaches the sensing device (reed contact) of the acknowledgement transmitter, a relay picks up once for a moment (pulse duration approx. 0.5...1.5 sec.).  Ideal to hide behind door panels etc. By means of the relay point it is then possible to switch on the horn, flasher lamps or the like for a while. Operating voltage: 12V= (11V...15V), current consumption < 9mA. Relay point: 1 x ON, max. 25V 3A.

Technical data:

• Operating voltage: 12V= (11V...15V)
• Current consumption < 9mA
• Relay point: 1 x ON, max. 25V 3A
• Dimensions: approx. 71 x 45 x 22 mm
