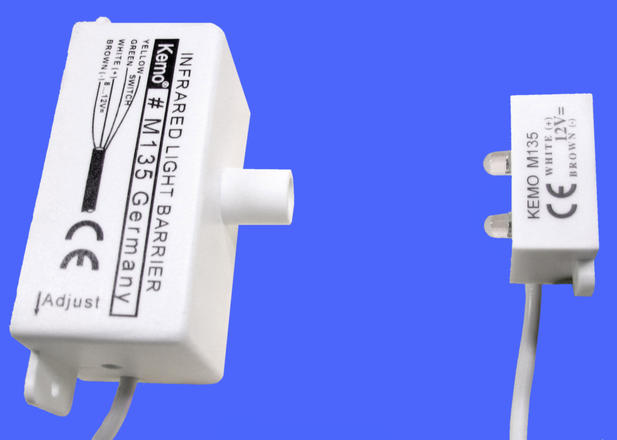

Ready to use infrared light barrier with transmitter and receiver. Designed more specifically for faster movement. Range: more than 4 metres. When people walk through the light barrier quickly, a relay switches on, in a time of 0,5...7 sec. It does not react on short interruption (example: insects) or on very long interruptions (example: slow walking). Thus it is possible to switch on a bell, counter or lamp or the like for this period. Operating voltage: 12 V=. Relay point 1 x ON max. 3 A 25 V.
Recommended tilted mirror if the infrared ray shall be deviated: K002 Reflector mirror.

Technical data:

• Operating voltage: 12V=
• Relay contact: 1 x ON max. 3A 25V
• Dimensions transmitter: approx. 40 x 25 x 21 mm (with fixing straps)
• Dimensions receiver: approx. 91 x 40 x 47 mm
