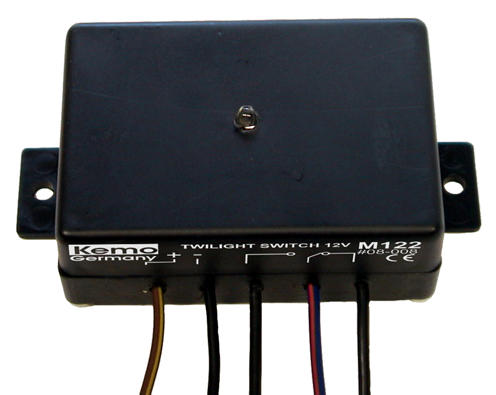

The twilight switch switches on e.g. lamps at nightfall and off again at daybreak. Operating voltage 12 V= (for weekend cottages, sailing yachts, caravans etc.) Distribution output: relay 1 x change over, max. 3 ampere.
The sensitivity of the luminous intensity may be changed by partially covering the sensor mechanically.

Technical data:

• Operating voltage: 12 V DC (11...14 V)
• Power consumption: approx. 2 mA / 35 mA (relay on / off)
• Relay contact: 1 x switch-over, loading capacity max. 25 V / 3 A
• Operating temperature range: approx. - 15... 50 degree C
• Luminous intensity switching-on: approx. 25 lux ± 20 %
• Luminous intensity switching-off: approx. 45 lux ± 20 %
• Switching delay: approx. 3...4 seconds
• Dimensions: approx. 72 x 50 x 30 mm
