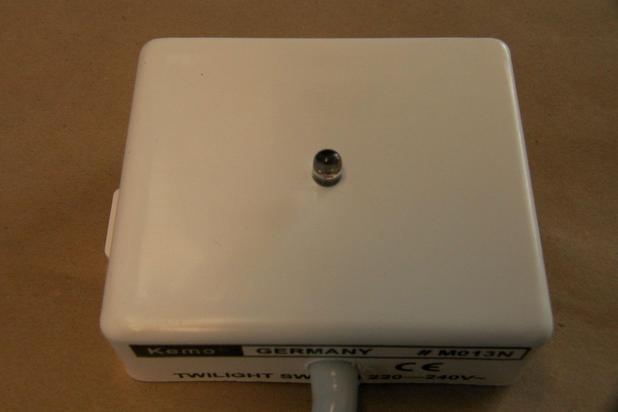

This electronic twilight switch can be used to switch on / off, security lights or other equipment. It has an in-built relay that can be used directly or to switch heavy load appliances via a secondary relay. The module may also work the other way round: on at daybreak (for advertising displays, fountains etc.) and off at nightfall. Floating loads up to 3A may be switched. Operating voltage: 220...240V~.

Technical data:

• Operating voltage: 210...240V~
• Current consumption: < 40mA
• Switching contact (floating): 1 x switch-over max. load 3A (resistive load) max. 1A (inductive load)
• Turn-on brightness: approx. 10 Lux ± 50%
• Turn-off brightness: approx. 60 Lux ± 50
• Delay in reaction: approx. 30 sec. ± 50%
• Temperature range: approx. - 15°C... 40°C
• Dimensions: approx. 70 x 60 x 22 mm
