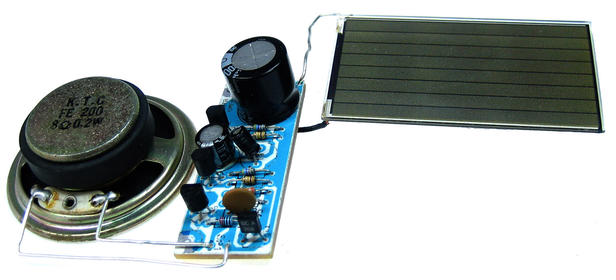

Solar Powered Mole & Vole Repellor Kit

Drives away moles and voles by using aggressive, pulsating and seismic oscillations underground. The operating voltage is drawn from a solar cell (enclosed) to be mounted above ground. It is also possible to operate the device with a battery or power supply (3V). The transmission of oscillations in the earth takes place via a dynamic loudspeaker. The kit, has to be placed in a waterproof container and placed below ground. Range: 500...1.000 qm.

Technical data:

• Operating voltage: 2.5 ... 4.5V
• Enclosed solar cell: 3.4V, 30mA
• Clock frequency: approx. 0,1 ... 2 Hz, depending on the operating voltage (solar radiation at the solar cell)
• Actual seismic frequency during the cycle: approx. 150 Hz
• Dimensions solar cell: approx. 37 x 66 mm
• Board dimensions: approx. 55 x 22 mm

Fitting case: G024
