Universal Amplifier Kit - 1 Watt

Price:

£3.55

SKU:

B182

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

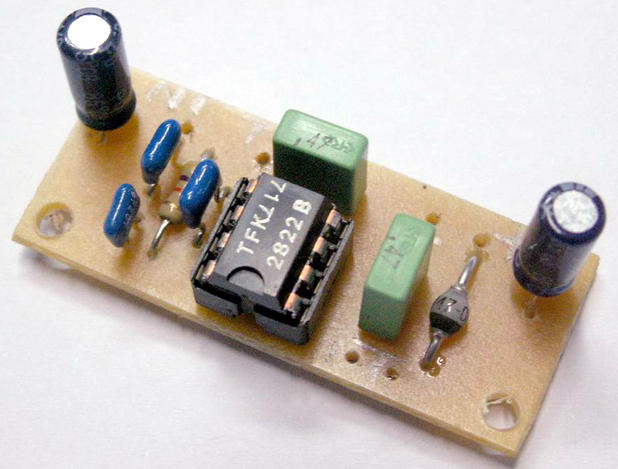

Universal Amplifier Kit - 1 Watt

Small universal amplifier with a peak sound capacity of 2 Watt. Operating voltage: 6...9VDC. Input sensitivity: approx. 80mV, loudspeaker connection: 8 ohm. Frequency range: approx. 20...25.000 Hz.
Technical data:

Power: max. 2W music power
Operating voltage: 6 ... 9VDC
Current consumption: max. 380mA
Frequency range: approx. 20 ... 25000 Hz
Sensitivity: approx. 80mV
Board dimensions: approx. 44,5 x 18 mm

Fitting case: G027
