Negative Ion Generator Kit (DISCONTINUED BY MANUFACTURER)

Price:

£0.00

SKU:

B137N

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

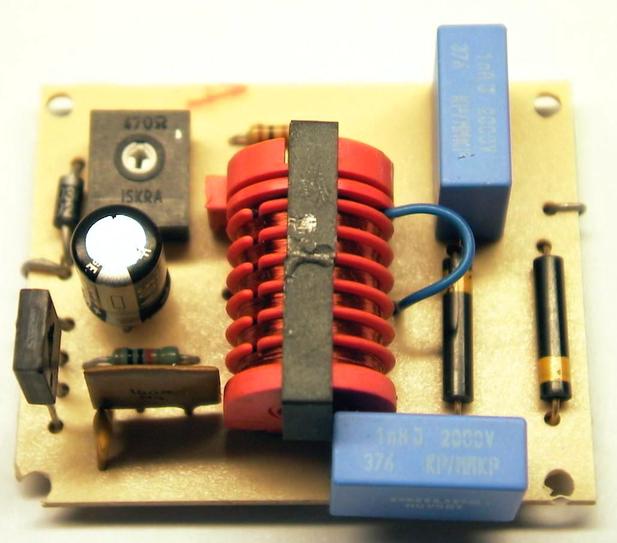

Negative Ion Generator Kit

ALTHOUGH A VERY POPULAR KIT, THE B137N HAS UNFORTUNATELY BEEN DISCONTINUED BY THE MANUFACTURER AND IS NO LONGER AVAILABLE FOR SALE

Input: 9...12VDC, output: 3...7kVs. This ion-generator regenerates negatively loaded air particles (air-ions). By this, an air-regenerating effect as well as the binding of dust and bacteria will be achieved.
A high share of negative air-ions is necessary for general well being: it reduces troubled sleep, aggressiveness, headache, sensitivity to changes in the weather, lack of concentration, etc.

Technical data:

Operating voltage: 9...12VDC
Current consumption: approx. 80...150mA
Output voltage: static, approx. 3.000...7.000V peak value
Board dimensions: approx. 54 x 44 mm

Fitting case: G027
