10 Channel Infrared Remote Control Kit

Price:

£14.95

SKU:

B241

Availability:

Product usually ships within 24 hours

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

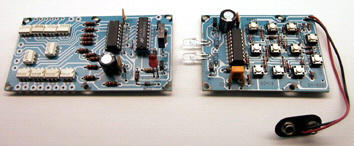

10 Channel Infrared Remote Control Kit

For switching 10 different applications via relay On or Off. 1 of the 10 different relays, respectively can be switched on or off each time. Transmitter: 3V battery, receiver: 12V. Range: approx. 5m (with convergent lens approx. 10m, not included in hte kit. Max. rupturing capacity of the installed relays: 25V 0.25A AC or DC.
Technical data:

Channels: 10, each with own relay output
Rupturing capacity: 0.25A direct or alternating voltage per relay
Range: approx. 5 meters
Operating voltage transmitter: 3VDC
Current consumption transmitter: < 20mA in transmit mode
Operating voltage receiver: 12VDC
Current consumption: < 20mA
Size of board receiver: approx. 55 x 75 mm
Size of board transmitter: approx. 105 x 55 mm

Fitting cases: Transmitter: G085, Teceiver G080
