Antenna Amplifier Kit - 50 To 1000 mHz

Price:

£5.95

SKU:

B199

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

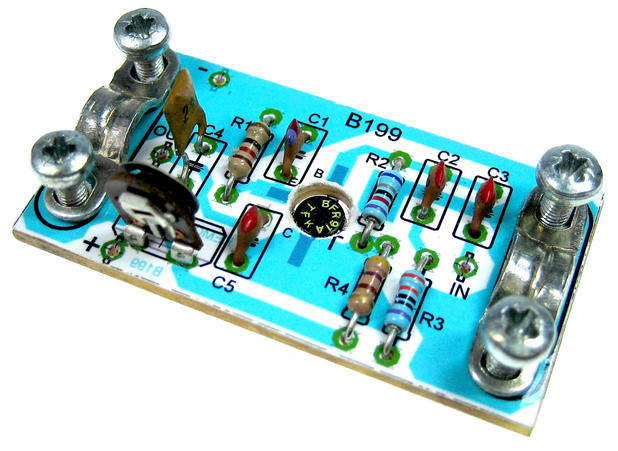

Antenna Amplifier Kit - 50 To 1000 mHz

Single-stage antenna amplifier, with continuously adjustable amplification up to max. 15dB. For any television range from channel 2 up to channel 65, especially suitable for VHF radio and cable television. Input and output impedance: 50...75Ω. There are prepared clamps for coaxial cable on the board. If required, it is possible to connect two antenna amplifiers one after another. The total amplification will increase accordingly. Operating voltage: 6...18V.
Technical data:

Operating voltage: 6...18V
In- and Output impedance: 50...75Ω
Amplification:0...15dB, adjustable
Frequency range: approx. 50...1000 MHz (TV-channel 2 ... 65)
Board dimensions: approx. 26 x 50 mm

The antenna amplifier (with battery) has to be installed into an earthed metal casing!
