FM Receiver Kit

Price:

£11.95

SKU:

B156

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

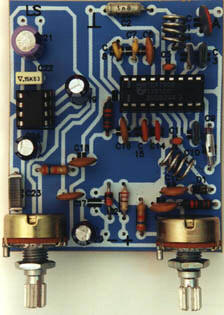

High Quality FM Receiver Kit

Extendable frequency up to 132 MHz!
High-quality receiver with the IC TDA7000. Excellent reception properties and selectivity. Loudspeaker connection 8 Ohm (1W). Very simple construction, almost no alignments are necessary. Operating voltage 9 Volt approx. 88 - 108 MHz.
Licensed radio amateurs may extend the frequency area of this FM-receiver up to approx. 132 MHz.
Technical data:

Operating voltage: 9V=, approx. 88 - 108 MHz
LF-output power: approx. 1 Watt
Loudspeaker connection: 8 Ohm
Receiving range: FM
Board dimensions: approx. 60 x 70 mm

Fitting case: G081
