Infrared Light Barrier Kit - 50 Meter

  • Image 1
Price:
USD23.37 (inc VAT) USD19.48 (exc VAT)
SKU:
B213
Shipping:
Calculated at checkout
Quantity:


Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

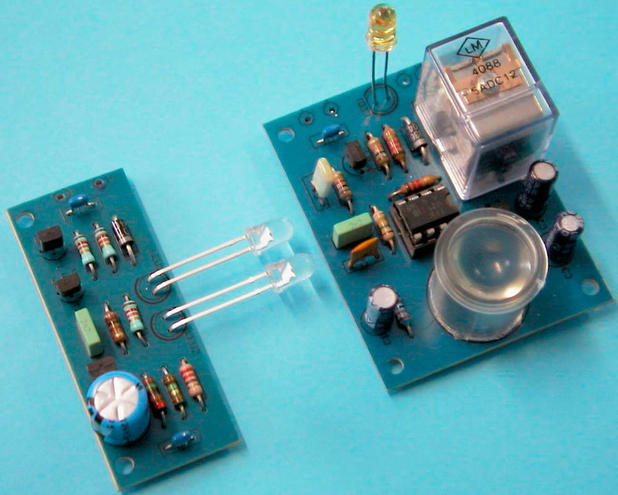

Infrared Light Barrier Kit - 50 Meters

With the enclosed optics and highly sensitive photodetector this light barrier has a max. range of up to 50m! The infrared light beam is not visible to humans men. If the light beam between the transmitter and receiver is interrupted (if a person walks through it) the relay in the receiver switches.
If you need to deflect the beam at various angles, we recommend the K002 deflector mirror.

Technical data:

  • Operating voltage transmitter: 9 VDC
  • Current consumption transmitter: approx. 100 mA
  • Operating voltage receiver: 12 VDC
  • Current consumption: max. approx. 50 mA
  • Range: maximal approx. 50 m
  • Relay contact receiver: 1 x switch-over, max. 25 V 3 A
  • Size of board transmitter: approx. 58 x 23 mm
  • Size of board receiver: approx. 57 x 45 mm

Fitting case: Transmitter: G027, receiver: G027

Available accessory: Reflector Mirror K002
