Ultrasonic Proximity Sensor Kit

Price:

£5.95

SKU:

B214

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

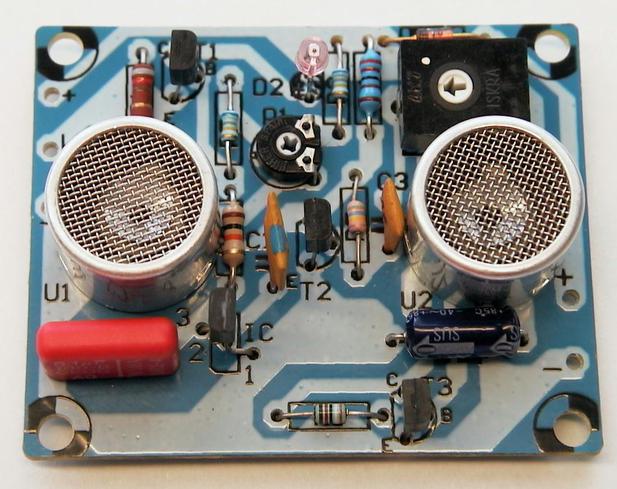

Ultrasonic Proximity Sensor Kit

An LED lights up if a body approaches the ultrasonic sensors at a distance of 10...80 cm (depending on the size of the body). Use: parking-in assistance for cars in garages, alarm signal for persons or animals straying into a certain area. Operating voltage: 9...12VDC. The device works according to the same principle as the ultrasonic echo ranging of bats.

Technical data:

Operating voltage: 9 ... 12VDC
Operating frequency: approx. 40 kHz
Range: approx. 10 ... 80 cm, depending on the size of the body (approx. 0.01 ... 0.5 m²)
Display: via a light-emitting diode
Current consumption: < 10mA
Board dimensions: approx. 55 x 45 mm

Fitting case: G023
Accessory kit: Relay card B197
