Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

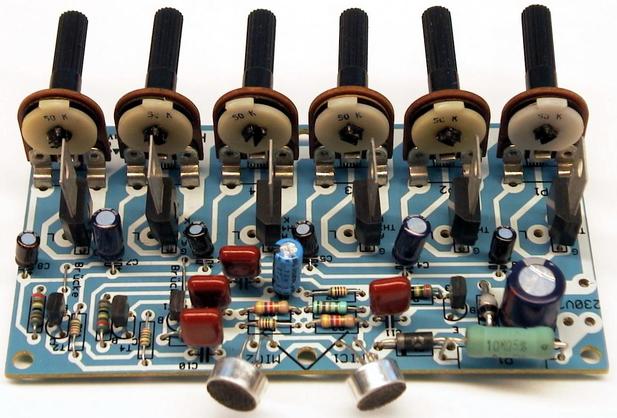

6 Channel, Stereo Lighting Console

Stereo lighting console with 2 microphones (2 x 3 channels). Each channel is adjustable individually. Lamps up to max. 500 watt (220...240V~) can be connected per channel. High input response! For discos or special effects.

Technical data:

Operating voltage: 220...240V~
Loading capacity: incandescent lamp load max. 500W per channel (= total loading capacity 3.000W)
Controller: one controller per channel (total 6 pieces)
Control of lamps: half-wave control with thyristors
Signal pick-up (music): via 2 electret capacitor microphones
Board dimensions: approx. 105 x 55 mm

Fitting case: G086
