8 Channel PC Controlled Relay Board Kit

Price:

£17.95

SKU:

B210

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

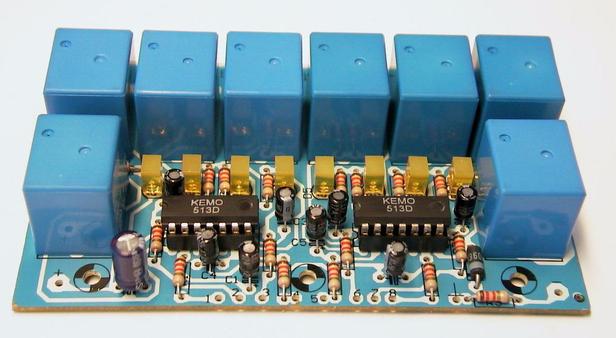

8 Channel Relay Board Kit

For switching different appliances, lamps or motors by means of a computer program. The relay points can be loaded up to 3A each at maximum. The relay board is controlled via the LPT port of a PC. Operating voltage of the relay board: 12VDC. By means of the enclosed software it is possible to switch on and off up to 8 different appliances at different times. It is also possible to programme certain switching sequences (also for several days) or attractive effect lighting for stages and discos! The module has to connected at the printer port of a standard PC. Diskette 3.5" is enclosed! With DOS-software from AT486 and WIN software from P100 on.
Diskette 3.5" is enclosed!
Technical data:

Operating voltage: 12VDC max. 0.8A
Channels: 8
Relay contact: 1 x ON max. 3A max. 25V each
(If higher voltages shall be switched, please follow the instructions in the enclosed printed matter no. M1003)
Indication: each channel by 1 LED
Delivered software: DOS + WIN
Board dimensions: approx. 112 x 70 mm

Controller Software For B210 (Win 9X, Win2K, WinXP)

Fitting case: G010
