Alternating Flasher Kit

Price:

£3.35

SKU:

B185

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

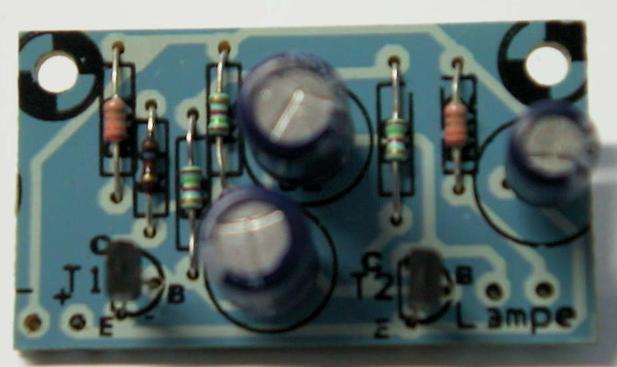

Alternating Flasher Kit

Electronic flasher unit for glow lamps 6...12VDC, max. 100mA. Also suitable as alternating flasher. Flashing frequency: approx. 1...3 x per second. Ideal for usage within model constructing
Together with the additional kit B197 "relay card" (not included in this kit) it is possible to operate flashers with loads up to 3 Ampere current consumption.
Technical data:

Operating voltage: 6 ... 12VDC
Switch current: max. 100mA
Flashing frequency: approx. 1 ... 3 x per second
Board dimensions: approx. 45 x 26 mm

Fitting case: G027

Additional kit: relay card B197
