Infrared Detector Kit

Price:

£3.45

SKU:

B195

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

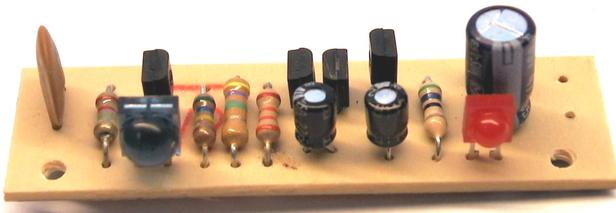

Infrared Detector Kit

With the aid of this circuitry it is possible to carry out functional tests on infrared remote controls used in TV-sets and video devices, etc. Whenever there is infrared radiation on the Special-Sensor, the LED will light up and indicate that the infrared remote control is operated. Operating voltage: 9VDC.
Accessory available is our kit "B 197 Relay Card". This could be connected with the Infrared Detector and it is then possible to switch through the relay, contact loads up to 3A.
Technical data:

Operating voltage: 9VDC (8...12V)
Current consumption without signal: < 200µA
Current consumption with a signal of a IR remote control: approx. 2...15mA
Reach between remote control and infrared detector: approx. 2...10 cm, depends on the remote control
Function indication: by a light-emitting diode
Board dimensions: ca. 17 x 59 mm

Fitting case: G027

Additional kit: relay card B197
