Infrared Light Barrier Add-On For B232 Kit

Price:

£8.95

SKU:

B232Z

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

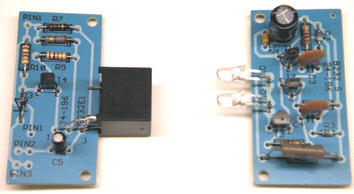

Infrared Light Barrier Add-On For B232 Kit

Add-On light barrier for kit "Infrared Stopwatch B232". With this extension you are able to operate the infrared stopwatch B232 with 2 light barriers: 1 barrier each at the start and finish. Operating voltage: 9VDC.
Technical data:

Operating voltage + current: transmitter: 9V= < 100mA
Receiver: 9VDC < 20mA
Range of the light barrier: approx. 8m
Board dimension receiver: approx. 54 x 25 mm
Board dimension transmitter: approx. 54 x 28 mm

Fitting cases: 2 x G081
