Product Description
A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

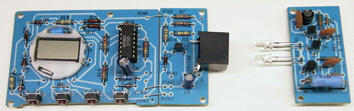

Infrared Stop Watch Kit
Infrared light barrier with stopwatch on base of the KEMO-IC 513B. For timekeeping at sporting events, etc. The following modes of operation are possible:
- Start by pushing the button and stop with the infrared light barrier.
- Start with the infrared light barrier and stop by pushing the button.
- Start with infrared, switch over the watch and stop with the same light barrier (for circuit).
When buying the additional light barrier B232Z, it is also possible to start and stop with 2 light barriers (on a straight distance at the starting and finishing line). Watch: quartz watch with LCD display. Precision: < 30 minutes 1/100 sec., > 30 min. 1 sec.. For battery operation 2 x 9VDC, range max. 8m.
Technical data:
- Operating voltage + current: transmitter: 9VDC, < 100mA, receiver with watch: 9VDC < 50mA
- Range of the light barrier: approx. 8m
- Display: < 30 min. resolution up to 1/100 sec., > 30 min. resolution 1 sec.
- Dimensions: Receiver board E1: approx. 54 x 25 mm
- Watch board E2: approx. 79 x 54 mm
- Transmitter board: approx. 54 x 28 mm
Fitting cases: G081 and G091
