Luminous Letter Controller Kit

Price:

£5.95

SKU:

B206

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

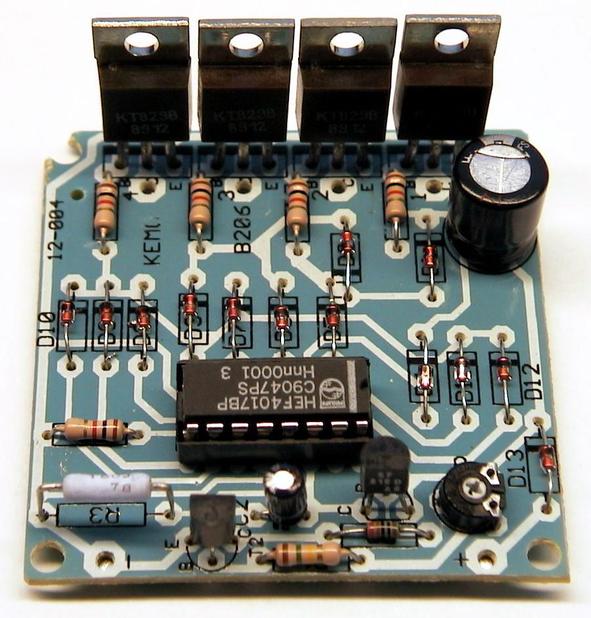

Luminous Letter Controller Kit

...switches on luminous letters or lamp groups slowly one after another, keeps all letters switched on for a while and switches off all letters at the same time. Then, the process starts again.
There are 4 connecting outputs at which in each case either 1 letter or one letter group could be connected (with a lot of letters or with a whole text). Operating voltage: 12...15VDC. Connecting outputs: 4, each max. 5 Ampere chargable. The connecting velocity is adjustable.
The control is especially suitable to be used with our LED-luminous letters Nr. B200.
Technical data:

Operating voltage: 12...15VDC
Switching outputs: 4
Loading capacity: max. 5A per switching output
Clock frequency adjustable: approx. 0.5...1 Hz
Timing pulse rate: After the 4th turn-on clock, all outputs still remain switched on for 6 clocks
Board dimensions: approx. 55 x 55 mm

Fitting case: G010
