Mini Timer Kit

Price:

£3.15

SKU:

B191

Shipping:

Calculated at checkout

Product Description

A Complete range of DIY Self Build Electro Kits. All electro kits are supplied with full assembly instructions and with such a large selection, there is a kit for most every application. The kits are used widely in education & training. Whether a student, hobbiest, garden shed Guru or applications developer, the kits provide real versatility and can be implemented into existing systems.

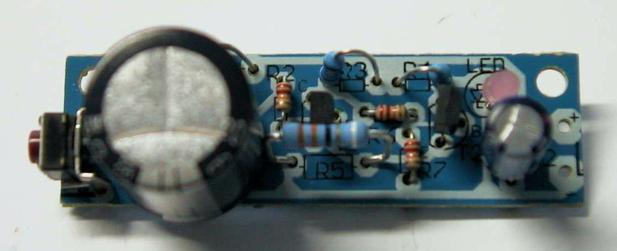

Mini Timer Kit - 9VDC

When the enclosed pushbutton is triggered, the light emitting diode will light up for approx. 100...180 seconds.
Usage: As timer for games (e.g. for chess) or for easy photographic and developing works. It is possible to make time adjustable, if a potentiometer 50 k lin. is connected (not enclosed in the kit).
As an add on accessory our kit B 197 "Relay Card", can be used which will enable switching of larger loads up to 3A.
Technical data:

Operating voltage: 9VDC
Switching time: approx. 100...180 seconds
Board dimensions: approx. 56 x 16 mm

Fitting case: G027

Additional kit: relay card B197
